Product Details:
|
| Electric Current Type: | AC | Blade Material: | Cast Iron |
|---|---|---|---|
| Mounting: | FREE STANDING | Voltage: | 110/220V/380V |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support, No Overseas Service Provided |
| Type: | Centrifugal Fan | Port: | Ningbo Or Shanghai Port |
LION KING high performance fans are powerful and reliable, used in a variety of scenarios
and can quickly provide clear visibility for fire fighters and rescue forces,
remove smoke from escape routes,and lower temperatures,especially in complex building
or in case of extreme smoke formation
Lion King ESV230 is electric variable speed ventilator,can be positioned to the precise angle between +10 and +20 angle
Specification:

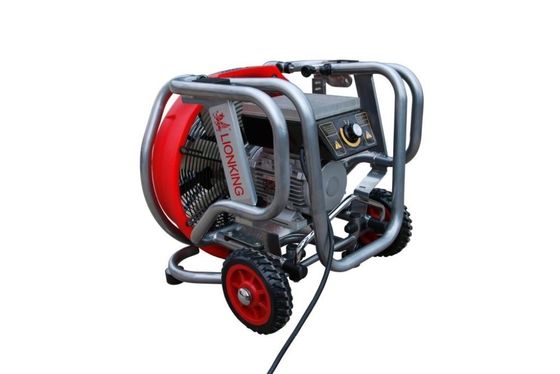

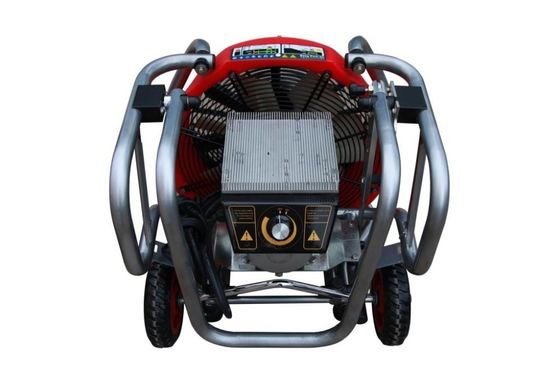

Electric Driven Ventilator LK-ESV230
Open air flow: 40 750 m³/h
Weight: 41 kg
Dimensions L x H x P: 550 x 550 x 490 mm
Propeller diameter: 420 mm
Engine: 2.2 kW with variable speed drive – IP55
Power supply: Single phase - 230V 50/60Hz – IP55
Power consumption in steady operation: 16,5 A
Mains plug: CE male plug – 220 V
Noise level: 85,3 dB at 3 m
Application:
Widely used for ventilation at Single door – like houses, small apartment blocks, factory building,warehouses,construction sites,tunnel,mining area.also can be used for firefighting
