Product Details:
|
| Customized Support: | OEM, ODM | Mounting: | FREE STANDING |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| Type: | Centrifugal Fan |

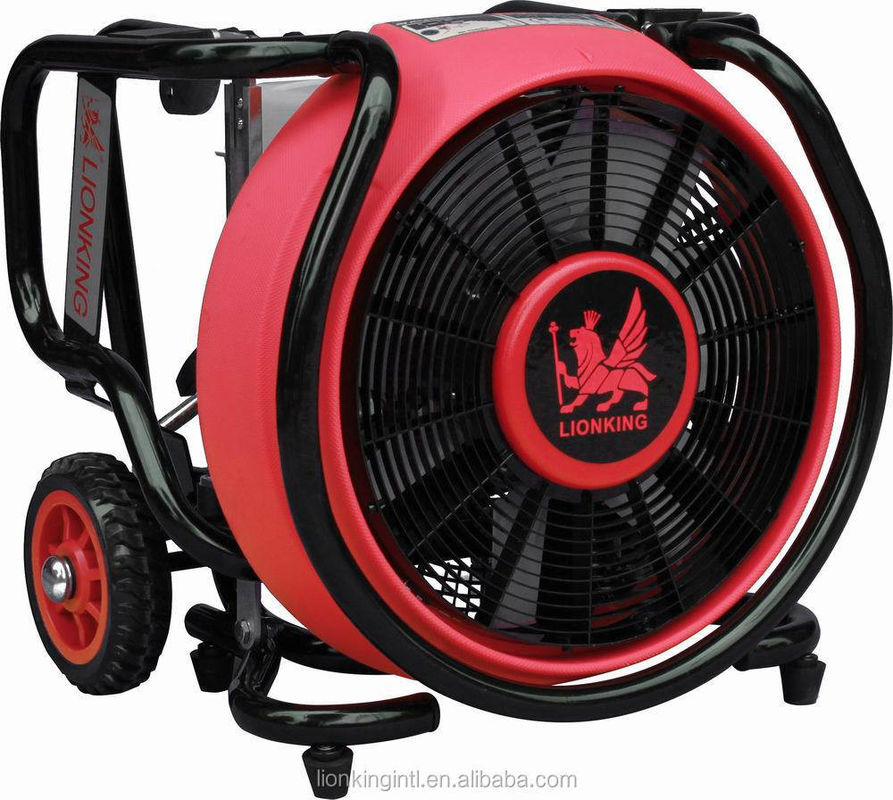

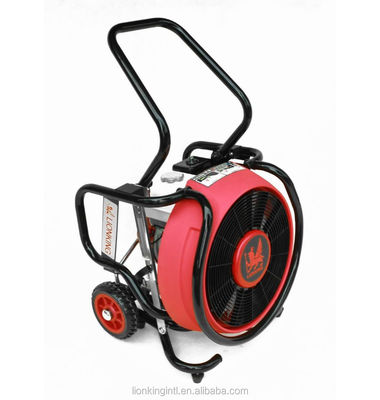

This turbo blower is gas powered ventilator and is high volume for larger structures
Construction
l Chassis in Φ30mm steel tube-epoxy coating
l Engine GX160 type-4 stroke-5.5hp at 3600 rpm
l Guard of the turbine in double polyethylene skin
l Turbine made of composite resin-Φ420mm-aluminium axle
l Operating autonomy 2h10 at full speed
l Standard equipment: engine stops automatically in the event of shortage of oil or if the fan is accidentally knocked over.
l Noise level around 90.9dB(A) at 3m
l Retractable handle, two 200mm diameter wheels
l Angle of tilt adjustable (from 10°to 20°)
l Airflow: 43100m³/h
Application:
Widely used for ventilation at factory building,warehouses,construction sites,tunnel,mining area.also can be used for firefighting
