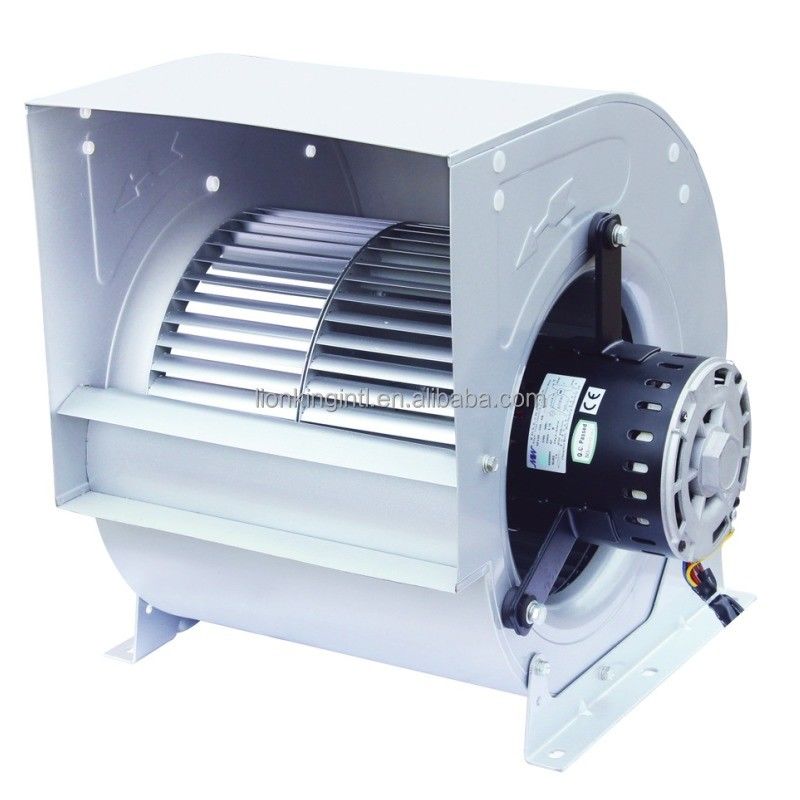

Centrifugal Fans For AHU,FFU, MAU, HVAC System

Centrifugal Fans For AHU,FFU, MAU, HVAC System
Centrifugal Fans For AHU,FFU, MAU, HVAC System

Large Image :  Centrifugal Fans For AHU,FFU, MAU, HVAC System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: LIONKING
Certification: CE, ISO
Model Number: LKZ
Payment & Shipping Terms:
Price: $30.00 - $150.00/pieces
Packaging Details: polywood packing
Supply Ability: 30000 Piece/Pieces per Month

Centrifugal Fans For AHU,FFU, MAU, HVAC System

Description
Electric Current Type: AC Blade Material: Stainless Steel
Mounting: Ceiling Fan Power: 7.5~4000KW
Voltage: 220V Air Volume: 800-5000m³/h
Speed: 480~1450r/m After-sales Service Provided: No Overseas Service Provided
Type: Centrifugal Fan Port: Ningbo/Shanghai

Centrifugal Fans For AHU,FFU, MAU,HVAC System

 LKZ series of centrifugal air-conditioning fans are based on LKT series. The fans are low noise fans which are newly developed according to the international advanced similar products. With single phase motor direct drive, the fans are characterized by high efficiency, low noise, easy speed regulation, compact structure. They are the ideal subsidiary equipment for variable air volume(VAV) air conditioner, ducted air conditioning unit, and other heating, purification equipment.



1,Impeller Diameter: 200~320 mm
2,Air Volume Range: 800~5200 m³/h
3,Total Pressure Range: 68~624 Pa
4,Sound Range: 50~73dB(A)
5,Driving type: Single-phase motor direct drive.
6,Model: 7-7, 8-8, 9-7, 9-9, 10-8, 10-10, 12-9, 12-12. Non-standard products are available according to customer’s requirements, Brushless DC motor can be used.
7,Applications: Ideal subsidiary equipment for variable air volume(VAV) air conditioner, ducted air conditioning unit, and other heating, purification equipment.



Company Information

  Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
    It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
    The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
    Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
    The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the "LION KING" brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with  consistent high praise and recognition by domestic and foreign customers.
    The company always insists the business philosophy of "Safety First, Quality First", and are keeping to serve all customers based on "honesty, innovation, rapid response, and full services."
