Product Details:
|
| Electric Current Type: | AC | Mounting: | Ceiling Fan |
|---|---|---|---|
| Blade Material: | Stainless Steel | Voltage: | 220V |
| Power: | 0.5-100w | Air Volume: | 1000-100000m³/h |
| Speed: | 2300RPM-3000RPM | After-sales Service Provided: | No Overseas Service Provided |
| Type: | Axial Flow Fan | Port: | Shanghai/Ningbo |

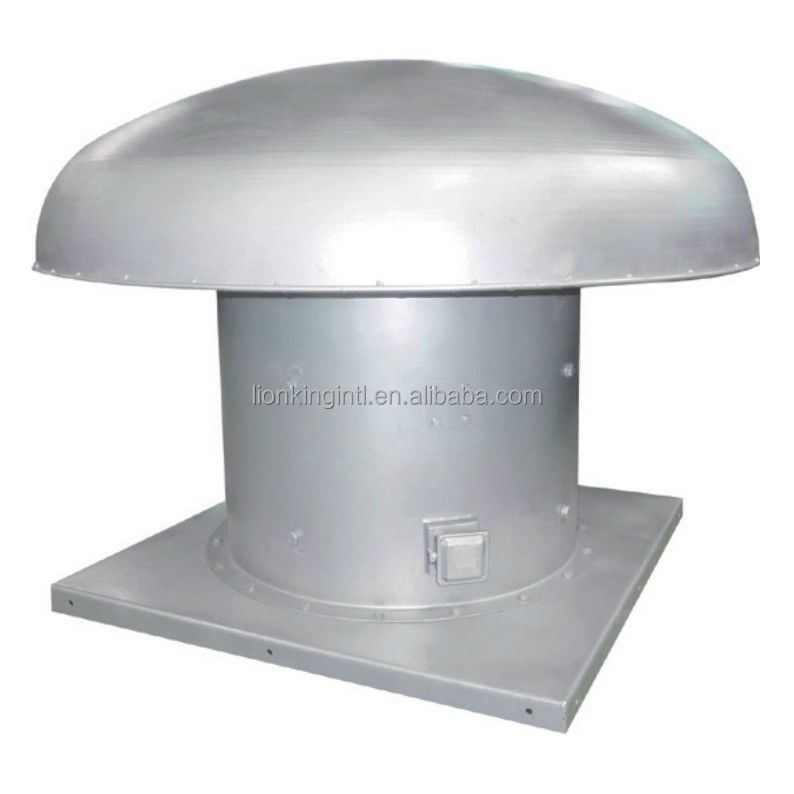

RACF series of roof fans
RACF series of roof fans can continuously operate more than 0.5 hours in the gas fume with temperature up to
280℃. The fans are popularly used for roof ventilation or fire-fighting smoke evacuation in factory buildings.
Impeller Diameter: 315-1250 mm
Air Volume Range: 1000-100000 m³/h
Pressure Range: Up to 1200 Pa
Working Temperature: Work continuously more than 0.5hour in 280℃ gas fume.
Drive Type: Direct drive
Installation: Installed with a circular or square flange, or flashing installation.
Applications: Fire-fighting smoke evacuation, workshop roof ventilation, explosion-proof ventilation.
