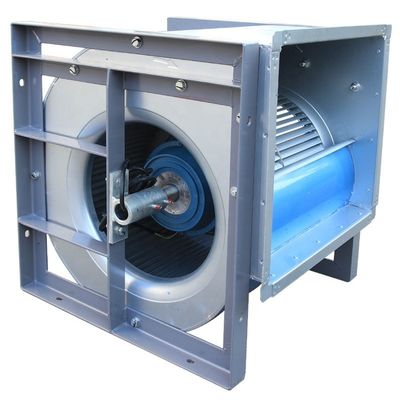

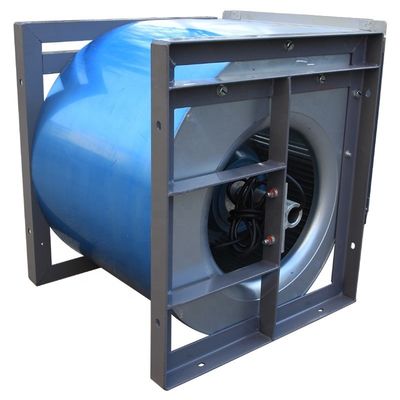

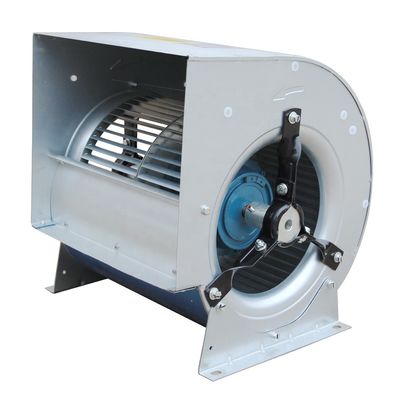

Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades

I'm Online Chat Now

Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades

Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades
Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades

Large Image :  Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades

Product Details:
Place of Origin: Zhejiang, China
Brand Name: LIONKING
Certification: CE, CCC, RoHS, ISO
Payment & Shipping Terms:
Price: $50.00 - $200.00/pieces
Packaging Details: polywood packing
Supply Ability: 3000 Piece/Pieces per Month

Double-inlet high-efficiency centrifugal fans with external direct-drive motors and impellers with forward-curved blades

Description
Blade Material: Galvanized Steel Mounting: FREE STANDING
Power: 7.5~4000KW Voltage: 380V
Air Volume: 1000-20000m3/h Warranty: 1 Year
After-sales Service Provided: Online Support, No Overseas Service Provided Type: Centrifugal Fan
Port: Shanghai/Ningbo

Double-inlet high-efficiency centrifugal fans with external  direct-drive motors and impellers with forward-curved blades

LKB series of forward curved multi-blades centrifugal fans are low noise and compact structure fans which are developed with advanced technology, adopting external rotor motor direct drive. The fans are characterized by high efficiency, low noise, large air flow, small size, compact structure. They are ideal subsidiary equipment for cabinet air-conditioning units, variable air volume(VAV) air conditioner, and other heating, air-conditioning, purification, ventilating equipment.

1,Impeller Diameter: 200~500 mm

2,Air Volume Range: 1000~20000 m³/h
3,Total Pressure Range: 200~850 Pa
4,Noise Range: 60~84dB(A)
5,Driving Type: External rotor motor direct drive
6,Model: 200, 225, 250, 280, 315, 355, 400, 450, 500
7,Applications: Ideal subsidiary equipment for cabinet air-conditioning units, variable air volume(VAV) air conditioner, and other heating, air-conditioning, purification equipment.
